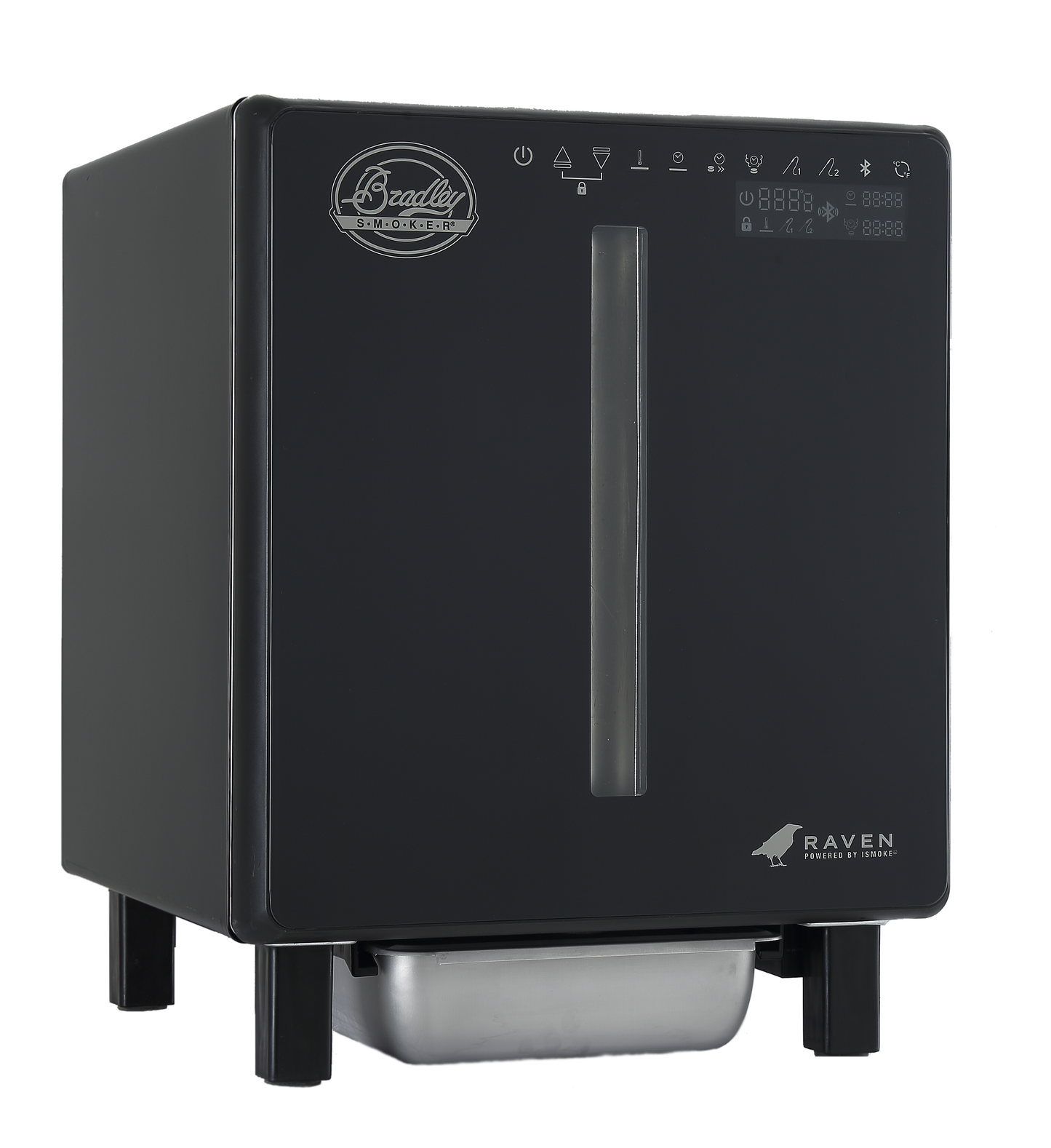

Bradley Raven Smoker

The Bradley Raven Smoker is an easy-to-use bluetooth-controlled electric food smoker that makes it easier than ever to prepare mouthwatering meals. The Bradley Raven is all electric, making it perfect for outdoor chefs who want something versatile and adaptable for smoking and cooking a wide variety of foods. It allows precise control over heat, and maintains the temperature you set throughout the day—with less than a 2% variance. Impressive features include a simplified bisquette feeding system, adjustable smoke intensity, two meat probes with individual setpoint controls, and a powder-coated exterior for long-lasting appeal. Temperature, time, and smoke are all completely controllable via bluetooth through the Bradley iSmoke™ app; simply download it to your phone and enjoy easy setup and management from anywhere.

Weight	29.7 kg / 65.5 lb
Dimensions	508 x 558 x 673 mm/ 20 × 22 × 26.5 in
Smoker Size
RATED VOLTAGE	240V
RATED FREQUENCY	50 / 60 Hz
RATED POWER	1005-1200W
MAIN HEATING ELEMENT	2 x 500W
BISQUETTE BURNER	100-300W
INTERNAL VOLUME	100L
TOTAL RACKS	4
COOKING AREA	450 X 413 X 474 mm/ 17.7 x 16.25 x 18.6”
COOK TIME ADJUSTABLE RANGE	0-10Hrs
COOK TIME ADJUSTABLE INCREMENT	1 min at a time
SMOKER INTERNAL OPERATING TEMPERATURE RANGE	30-160℃/86-320°F
OUTSIDE TEMPERATURE OPERATING RANGE	-10 ~ +50℃ / 14-122°F
ADJUSTABLE MEAT TARGET TEMPERATURE RANGE	5-100℃/41-212°F
ADJUSTABLE RANGE INCREMENT	1℃/1 or 2°F at the time
INTERNAL FOOD MEASUREMENT RANGE	5-100℃/41-212°F
POWER	50 / 60 Hz

The Bradley Smoker carries with it a 1 year limited warranty against manufacturing defects.

Requirements and Limitations:

Warranty is effective from the date of purchase. Keep your sales receipt as proof of purchase date. Warranty is limited to repair or replacement of components as determined by Bradley Smoker Bradley Smoker at its discretion will provide a replacement component for any component found by Bradley Smoker to be defective and shall not be responsible for any re-assembly. This limited warranty is non-transferable and becomes void if product is used for commercial or rental purposes. Warranty covers manufacturer's defects only. This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage. Warranty is valid only in the country of purchase. Shipping and handling charges are the responsibility of the original consumer/purchaser for all in/out of warranty parts orders. Serial number of the smoker must be provided on all warranty claims.

Bradley Smoker excludes from its warranty the following:

Defects/damage resulting from accident, abuse, misuse, alteration, improper assembly/installation, vandalism are not covered. Damage resulting from weather conditions including but not limited to hail, wind, rain, or snow is not covered. Normal wear and tear, chipping and scratching on painted surfaces is not covered. Discoloration from exposure to sunlight, heat or chemicals is not covered by this warranty. Failure to perform regular maintenance, safety checks and service. Including but not limited to removal of grease build up resulting in a flash fire, damage caused by grease fires is not covered by this warranty.

To ensure your satisfaction register your smoker online at: www.bradleysmoker.co.uk

For warranty and customer services please call: +44 (0) 1803 712712

OWNER'S MANUAL	Download
COOK TOOL DOWNLOAD	Download
HOW TO USE COOK TOOL	Download
